Real-time Mach kernel RAM treemaps, per-core Apple Silicon microsecond deltas, and surgical ~/Library cleanup — in a pure native Swift binary under 15 MB.
Loved by developers, creators, and Mac power users.
“The microsecond CPU matrix found a runaway build daemon in seconds. It has permanently replaced Activity Monitor on my machine.”
“The RAM treemap is the clearest memory visualization I have used. It feels like a native Apple app, not another bloated utility.”
“I reclaimed 38 GB from old app leftovers without touching Terminal. The cleanup preview made it feel completely safe.”
Final Cut render caches. Xcode Derived Data. Docker layers. VS Code language server indexes. MacSentinel Smart Care scans 50 industry categories and 500+ apps with Custom Ignore Lists to protect vital caches and guarantee Zero-Risk, Trash-first safety.
Every screenshot below is genuine, captured on Apple Silicon hardware at 2704 × 1620 px.

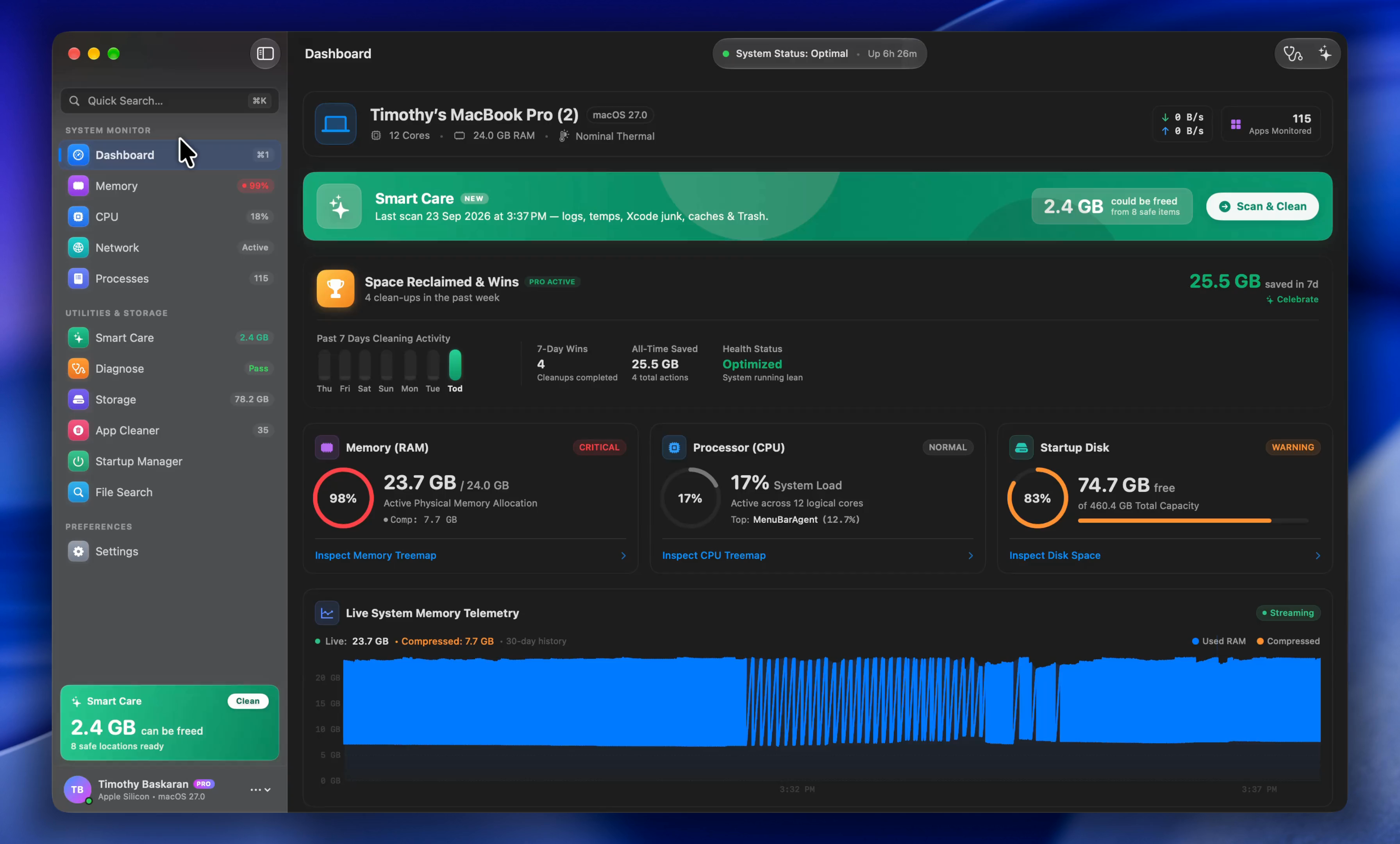

All system vitals in a single unified view. Tracks physical Mach RSS memory, per-core CPU load, SSD disk utilization, network transfer speeds, and rolling 90-second Catmull-Rom historical charts with under 0.2% CPU overhead.
Tools designed in the x86 Intel era were never built for Apple Silicon's microsecond thread migrations or modern multi-process Electron stacks.
Activity Monitor samples every 1–5 s. Micro-bursts that peg Performance cores for 50 ms vanish inside time-averages — hiding thermal throttling causes entirely.
VSIZE columns show Chrome helpers claiming 100+ GB of RAM that doesn't exist — while real physical RSS leaks quietly grow to fill unified memory.
Dragging an app to Trash removes only the .app. Gigabytes remain in Application Support, Caches, Containers, and Launch Agents — forever.
Activity Monitor presents an unorganized flat list of hundreds of disconnected helper PIDs with zero parent-child context or spatial hierarchy across multi-process apps.
When a brief compilation pass spikes CPU or a rogue thread terminates, the event vanishes instantly from Activity Monitor, leaving you with zero post-incident telemetry.
Modern macOS intentionally uses idle RAM for cache and compression. Activity Monitor's simple gauges create false anxiety while ignoring true APFS swap thrashing risks.
No Electron. No Node.js. No launch daemons. Direct access to Apple Silicon hardware counters.

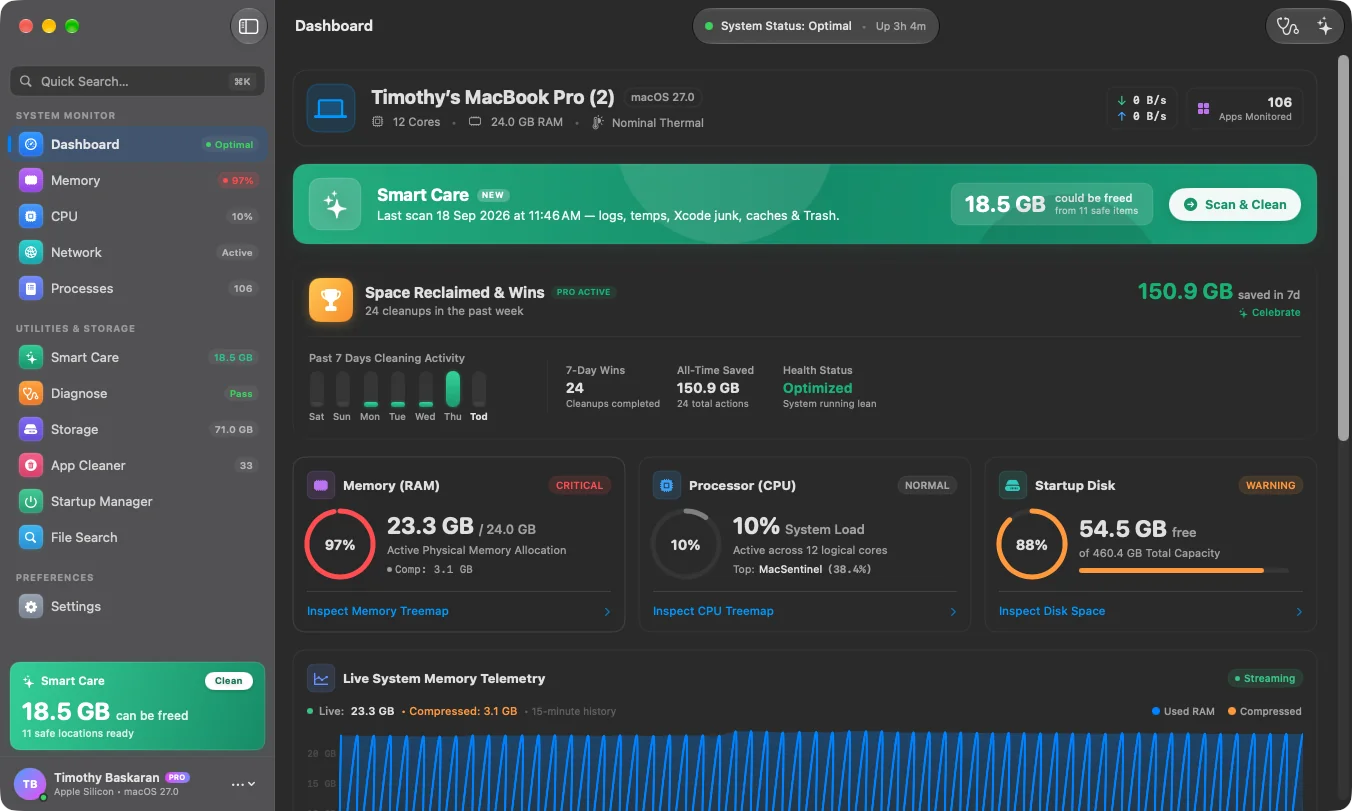

Consolidated real-time vitals in a single retina pane. Tracks physical Mach RSS memory, per-core CPU load, SSD disk utilization, socket network throughput, and rolling 90-second Catmull-Rom historical charts with under 0.2% CPU overhead.

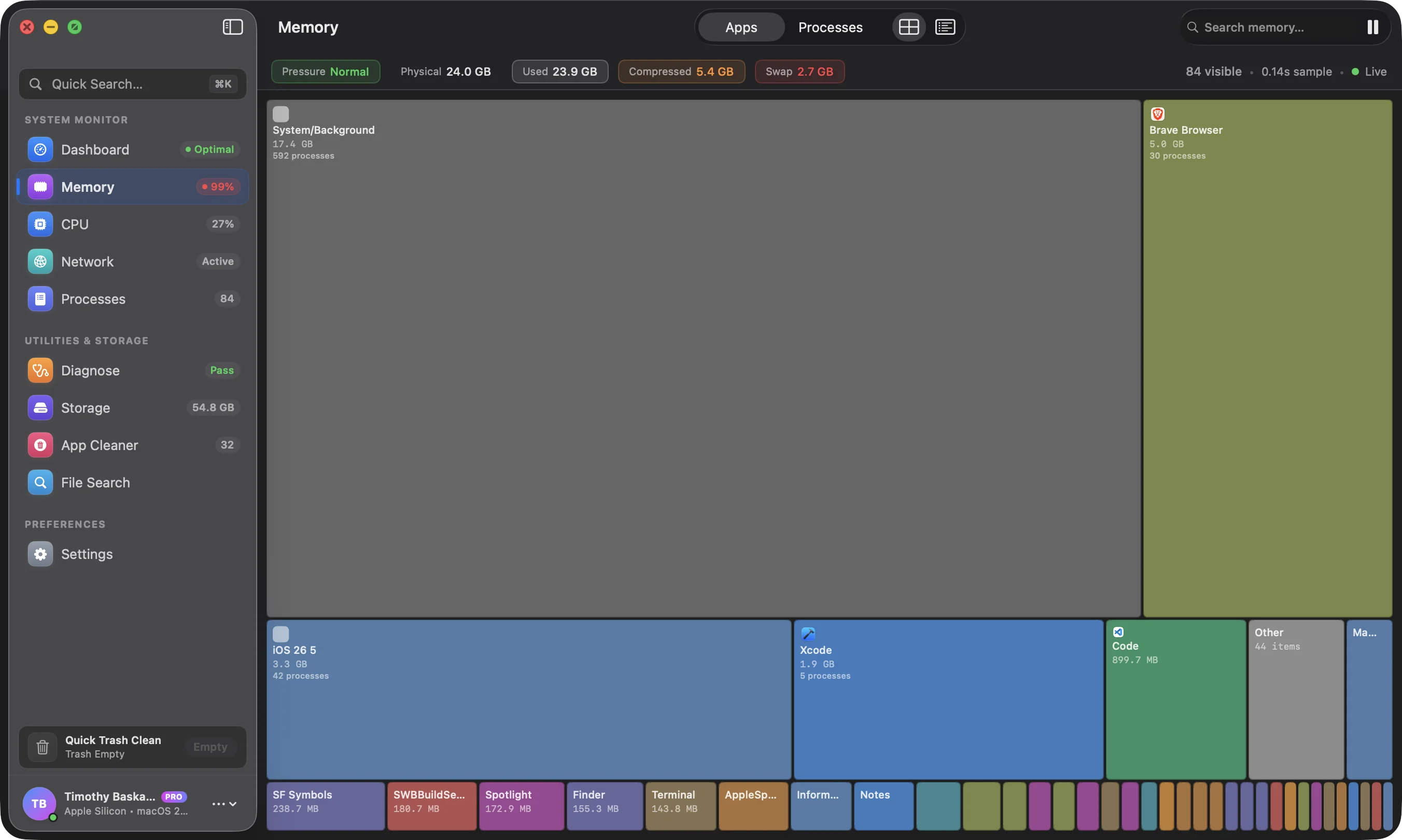

Multi-process stacks (Xcode, Chrome, Docker) clustered into proportional squarified rectangles based on actual physical hardware RSS allocation.

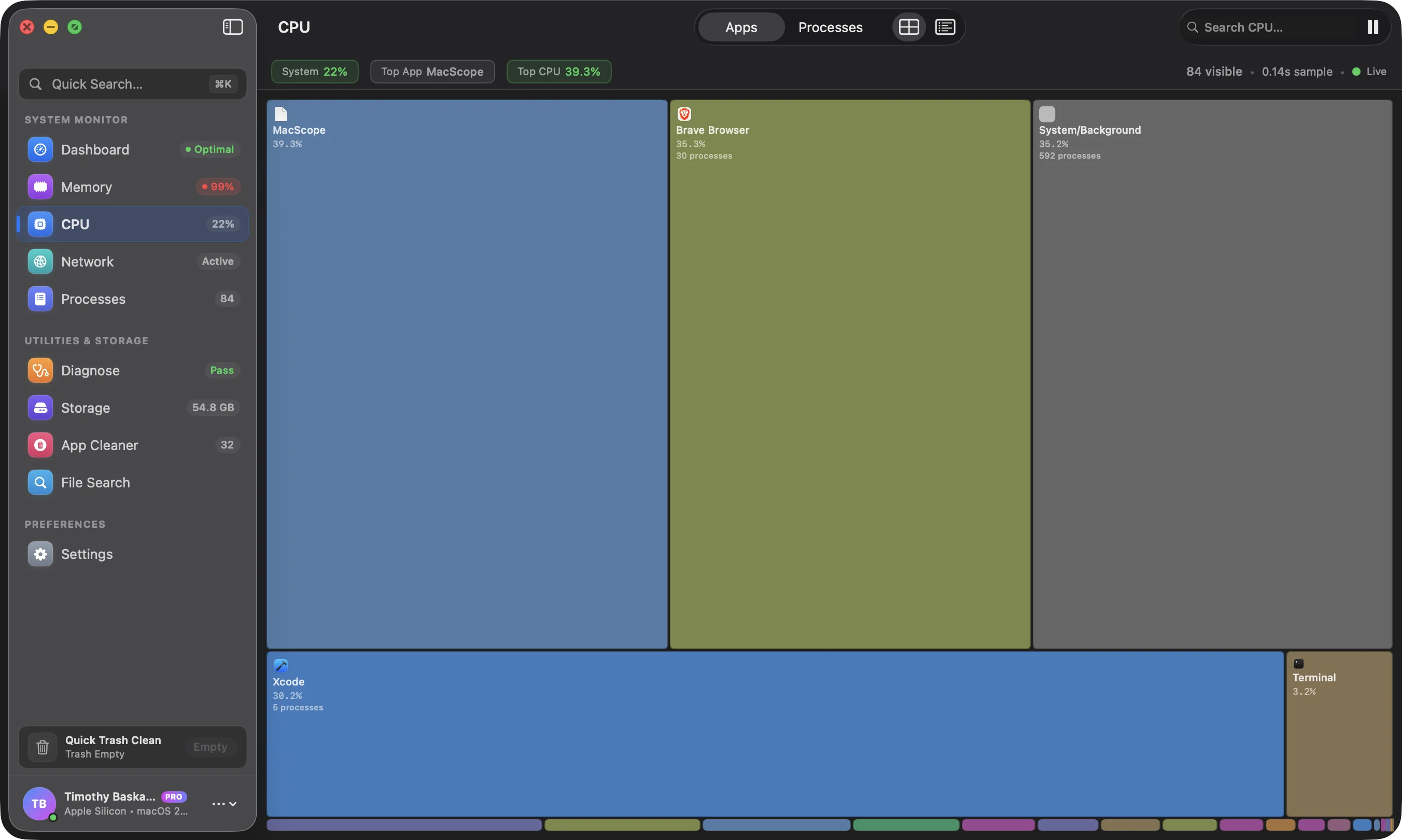

Track Performance (P) and Efficiency (E) core clusters independently. Microsecond differential deltas computed directly from Mach core telemetry, pinpointing lock contentions and thermal throttling before your Mac stutters.

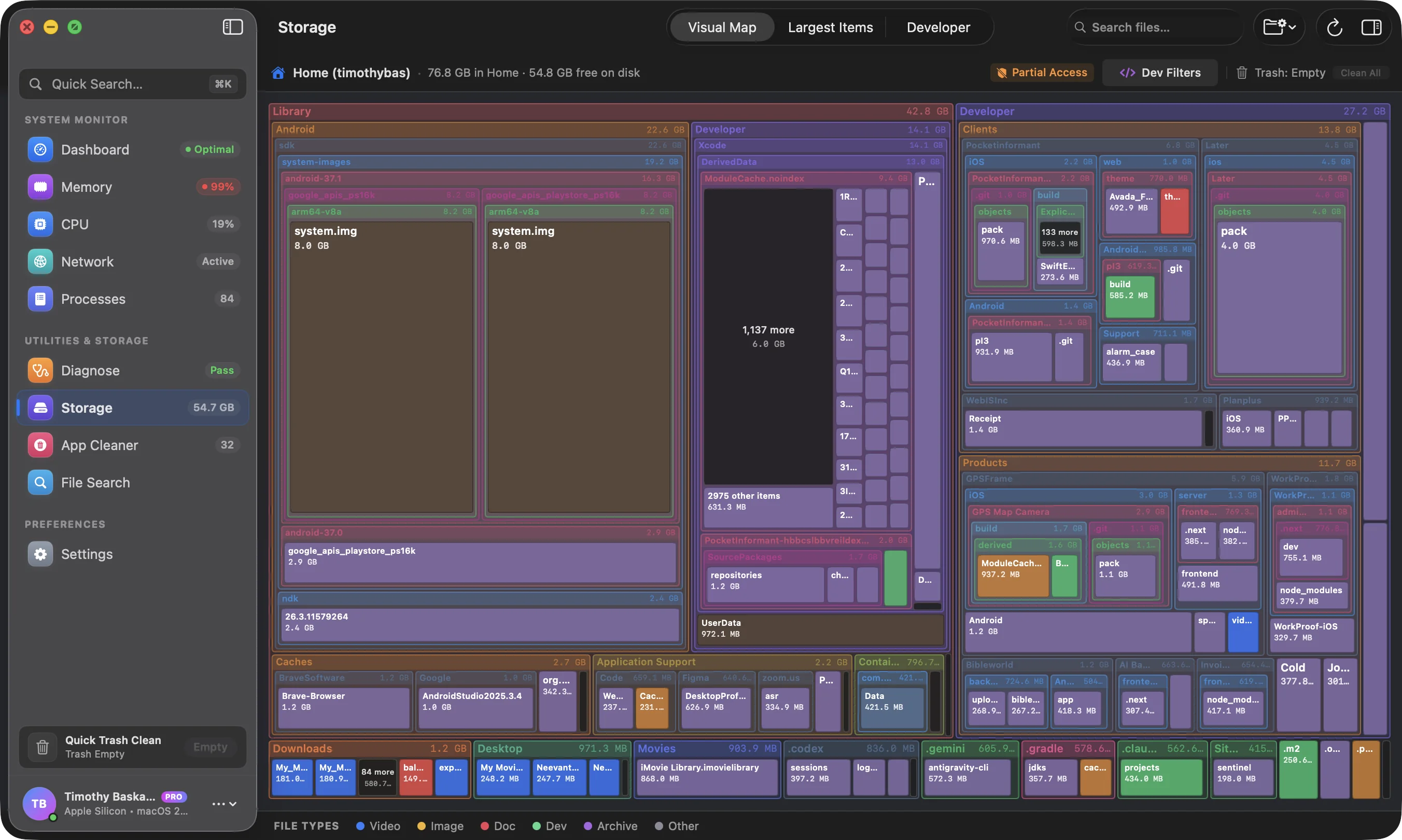

Spot what is consuming your fast internal SSD. Visualizes directory hierarchies into nested proportional rectangles to navigate and reclaim gigabytes without Terminal.

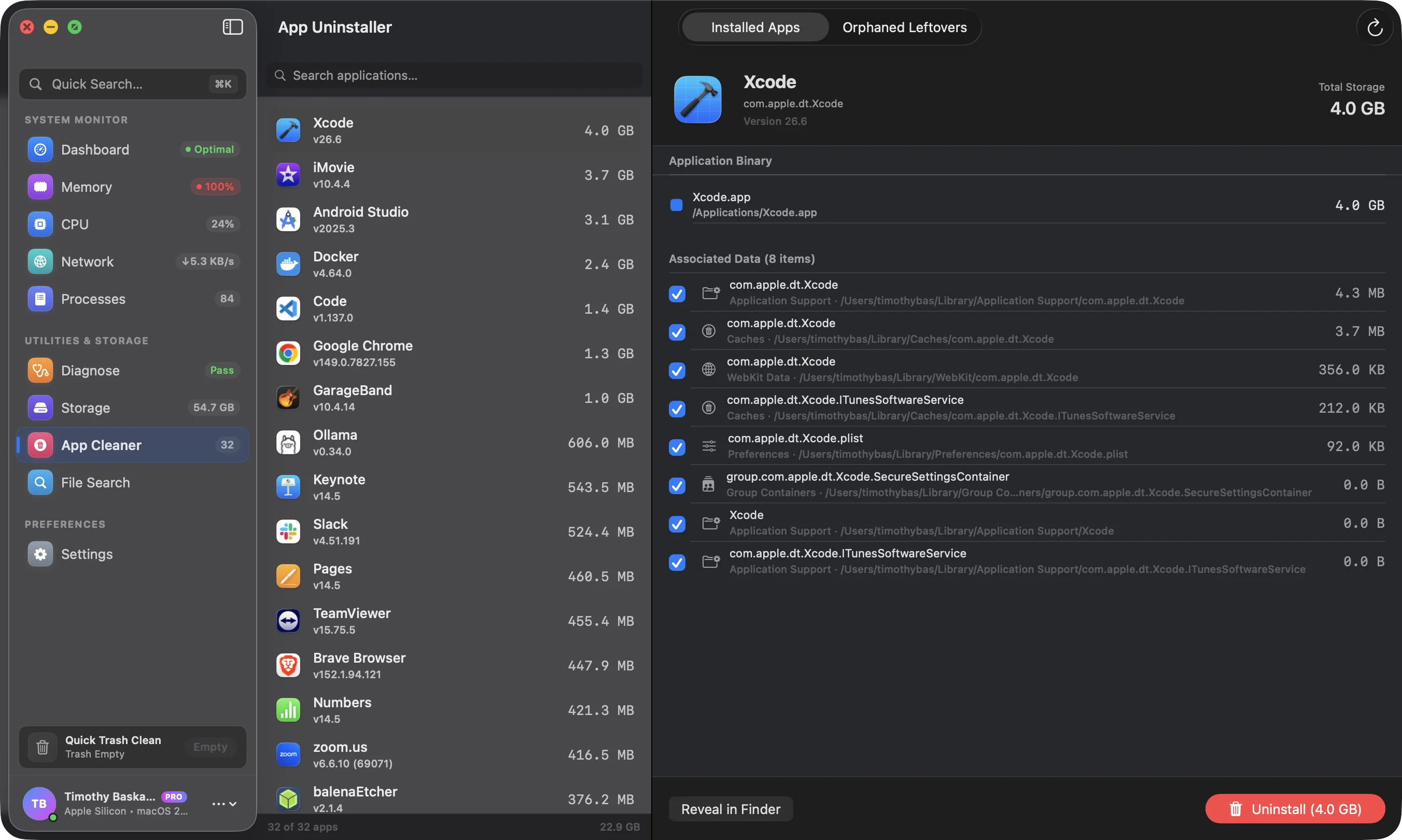

Scan and purge orphaned Application Support, Caches, Containers, and plists left by deleted apps without installing background daemons.

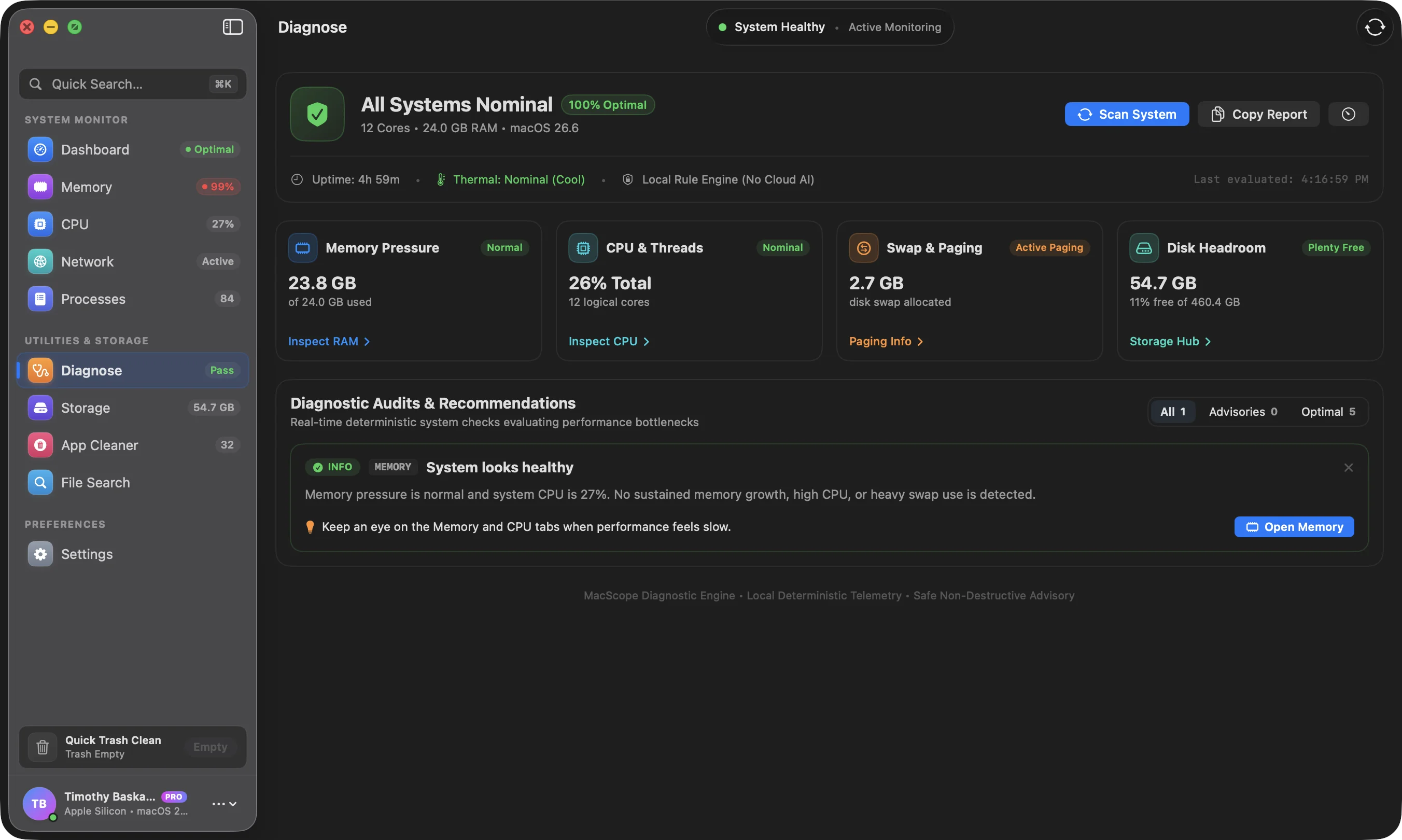

Automated heuristics that flag runaway threads, memory growth trends, launch agent conflicts, and uncompressed swap exhaustion before your Mac drops frames.

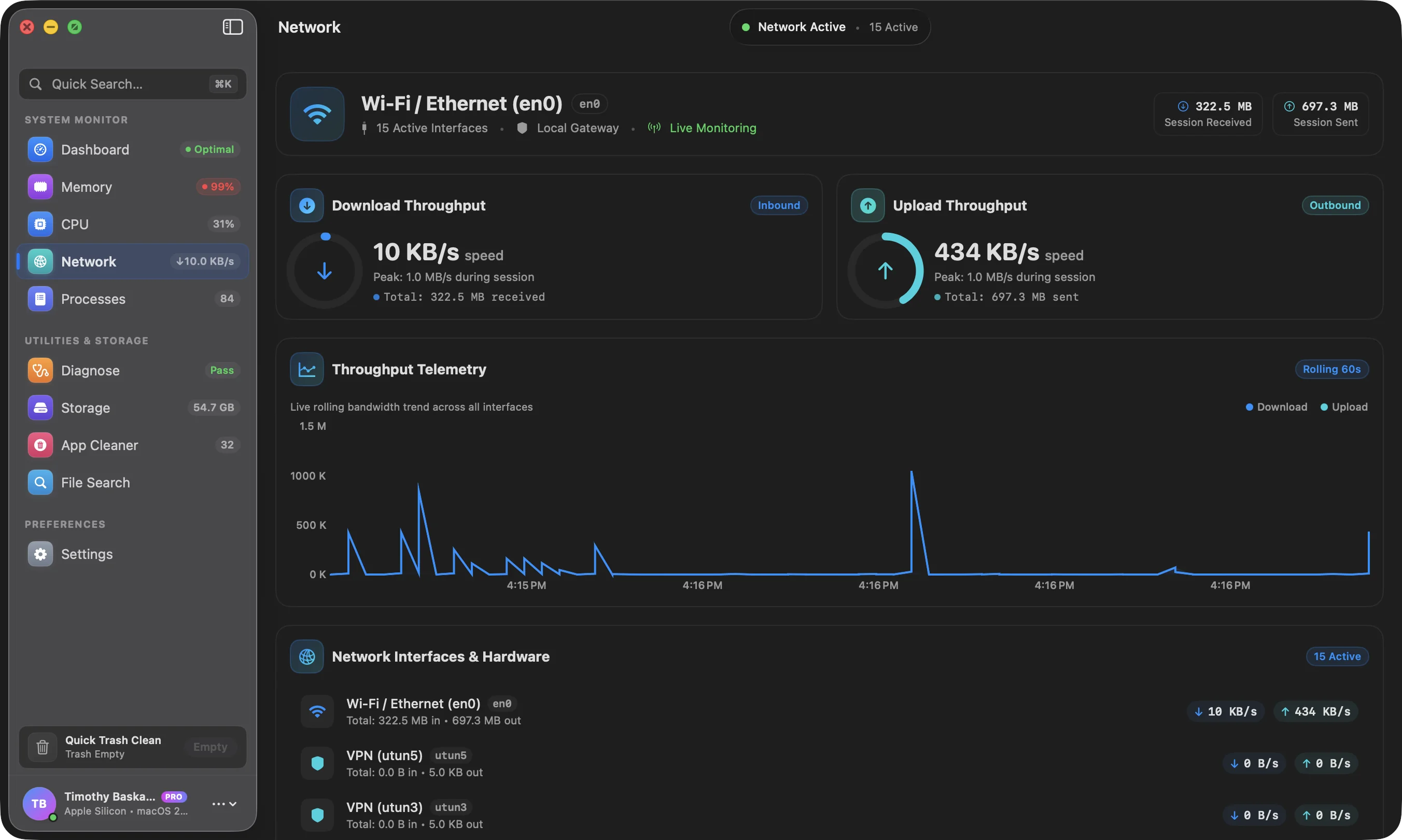

Per-PID live incoming and outgoing throughput. Spot rogue background sync daemons, cloud backup spikes, and uninvited telemetry calls instantly.
A side-by-side look at MacSentinel vs. Apple's built-in Activity Monitor.
Why downloading software outside the Mac App Store is safer and faster than ever when Developer ID code signing, Hardened Runtime, and Apple Notarization are implemented properly.
Dragging an app to Trash only removes the .app bundle. Discover how hundreds of orphaned application containers, caches, and logs linger in your ~/Library directory.
Why does Activity Monitor show 120 GB of virtual memory while your Mac has only 16 GB of physical RAM? Learn how Mach kernel physical RSS mapping reveals true memory hogs.
An engineering breakdown of why traditional Unix monitoring tools produce inaccurate metrics on Apple Silicon, how macOS Mach microkernel scheduling works, and how MacSentinel achieves sub-millisecond precision with zero daemon overhead.
On modern Apple Silicon Macs (M1 through M4, Pro, Max, and Ultra), physical memory is packaged directly onto the system-on-chip (SoC) substrate alongside CPU cores, the Metal GPU compute pipeline, the Apple Neural Engine (ANE), and the Secure Enclave. This unified pool delivers up to 800 GB/s of bandwidth, but it fundamentally breaks Unix-style memory accounting models.
Default macOS utilities like Activity Monitor rely on legacy POSIX virtual memory counters that group file-backed page caches, dynamic shared library frameworks (dyld shared cache), and compressed memory segments into broad, ill-defined totals. As a consequence, power users see misleading “Memory Used” spikes that do not reflect actual hardware pressure.
MacSentinel bypasses high-level abstractions to query low-level Mach kernel APIs directly viamach_vm_region_recurse_64and task_info(). By tracking physical Resident Set Size (RSS) and anonymous dirty pages—pages that cannot be paged out to disk without triggering compression or APFS swap thrashing—MacSentinel displays true hardware resource consumption in proportional spatial treemaps.
Apple Silicon architecture features heterogeneous core topologies: high-efficiency (E) cores designed for low-power background tasks and ultra-high-throughput performance (P) cores engineered for maximum single-threaded and vector burst loads. The macOS Darwin kernel scheduler constantly migrates threads between clusters based on Quality of Service (QoS) classes (QOS_CLASS_USER_INTERACTIVE throughQOS_CLASS_BACKGROUND).
Standard performance monitors sample CPU utilization on a coarse 1-second to 5-second sampling cadence. Because compiler build tools, TypeScript language servers, and video render passes execute short bursts that finish in tens of milliseconds, these spikes are smoothed out by mathematical averaging, disguising the real cause of thermal throttling, fan spin-up, and transient UI stutter.
MacSentinel monitors execution deltas via Mach thread sampling (mach_thread_info()) at microsecond resolution. It presents a real-time matrix of each individual P-core and E-core, allowing engineers to visualize exact thread affinity, lock contention bottlenecks, and runaway child workers instantly.
When a user uninstalls a macOS application by dragging it to the Trash, macOS only purges the executable bundle from /Applications. In reality, modern applications scatter gigabytes of persistent state across isolated directories:
Commercial “cleaner” apps frequently install background daemons, launch agents, and privileged helper tools that consume battery and phone home with telemetry. MacSentinel runs strictly on-demand. Its Smart Care engine indexes installed bundle IDs across system domains and correlates filesystem paths to identify abandoned debris with zero background daemons.
Unlike web-wrapped Electron utilities that consume 300 MB+ of memory just to show a menu bar icon, MacSentinel is written in pure native Swift and compiled directly to Apple Universal 2 machine code. It requires zero third-party kernel extensions (kexts) and runs entirely within the user security sandbox.
Every binary release is signed with a valid Apple Developer ID certificate (issued to Appsinfoway) and notarized via Apple’s automated ticket service. On macOS Gatekeeper verification, your Mac validates the cryptographic stapled ticket before launching.
Crucially, MacSentinel operates under a strict Zero-Telemetry Architecture. System metrics, process names, network socket destinations, and storage paths are processed entirely in memory on your device. Nothing is uploaded to external servers, making MacSentinel compliant with strict corporate compliance requirements, defense environments, and confidential development setups.
Modern macOS does not manage RAM through simple binary allocation. Instead, the XNU kernel runs a continuous memory pressure state machine: NOTE_VM_PRESSURE_NORMAL (green),NOTE_VM_PRESSURE_WARN (amber), andNOTE_VM_PRESSURE_CRITICAL (red).
When memory demand rises, the kernel invokes the WKdm hardware-accelerated memory compressor (vm_compressor_pager) to compact 4 KB pages into a 1 KB compressed pool in RAM. Only when the compressed pool saturates does macOS initiate disk swap writes to /private/var/vm/swapfile0, causing SSD write amplification and noticeable micro-stutters during 4K video playback or compilation passes.
MacSentinel samples the mathematical trajectory slope of anonymous dirty pages across your active apps. Rather than waiting until memory pressure turns red, MacSentinel alerts you while pressure is still green—pinpointing the exact runaway PID before swap thrashing degrades system responsiveness.
When your internet connection stutters or ping spikes during video conferences, determining which process is consuming upstream bandwidth is nearly impossible in standard macOS tools. Activity Monitor groups network bytes into cumulative lifetime counters, meaning an app that transferred 10 GB yesterday looks identical to an app actively saturating your uplink now.
MacSentinel samples dynamic socket descriptors via BSD kernel routing tables and sysctl network interface trees. It calculates instantaneous differential transfer rates (in KB/s and MB/s) on a per-process basis, distinguishing between local UNIX domain IPC sockets and external TCP/UDP connections.
This allows you to instantly identify rogue background cloud synchronization daemons (such as Dropbox, OneDrive, or Adobe Creative Cloud), unauthorized background telemetry uploads, and hidden package manager updates that silently consume bandwidth.
When a Mac stutters or drops frames, Activity Monitor often obscures the root cause behind ambiguous system processes. Here is how to interpret Mach kernel telemetry to resolve the most common performance issues:
WindowServer is the compositor process responsible for drawing every window, shadow, and visual transition on macOS. On high-resolution displays (especially scaled 4K or 5K monitors), WindowServer can consume 40% to 90% of a performance core when applications trigger continuous invalidation cycles. Transparent blurs in un-optimized Electron applications, video editor playheads, and memory-leaking web canvases force WindowServer to recalculate layer compositing 120 times per second on ProMotion displays.
MacSentinel breaks down WindowServer GPU memory buffers and dirty RSS separately from standard apps. By identifying which specific background client process is flooding WindowServer with drawing events, you can terminate the rogue application rather than restarting your entire user session.
The macOS Spotlight metadata indexing daemon (mds) and its worker threads (mdworker_shared) periodically spike CPU consumption to 100% across multiple cores. This typically occurs when developer projects create rapidly changing nested directory hierarchies—such as node_modules, Rust target folders, or Python virtual environments.
Activity Monitor only shows that Spotlight is busy, leaving you to guess which folder is triggering the index storm. MacSentinel tracks APFS filesystem notification queues (FSEvents) and disk write rates to immediately pinpoint the exact path causing the indexing loop, allowing you to add proper exclusions in seconds.
One of the most frequently misunderstood behaviors on macOS is kernel_tasksuddenly reporting 300% to 1,000% CPU utilization in Activity Monitor. Users instinctively assume the operating system kernel has crashed or frozen. In reality, this is Apple’s intentional thermal management architecture in action.
When internal temperature sensors detect elevated thermal conditions—such as high ambient room temperatures, blocked MacBook vents, or charging under heavy GPU workloads—the kernel scheduler intentionally schedules idle no-op threads on the hottest CPU cores. This artificially starves user-space processes of CPU execution cycles, allowing the chassis to cool down without requiring an abrupt emergency thermal shutdown. MacSentinel correlates per-core execution deltas with thermal throttling signals so you know immediately whether your Mac is experiencing true software contention or thermal dissipation management.
Modern developer workflows are notorious for stealth disk consumption. A single active iOS or macOS development environment routinely generates 40 GB to 100 GB of intermediate compiler build artifacts in ~/Library/Developer/Xcode/DerivedData, including precompiled headers, module maps, and symbol tables that are never automatically purged. Similarly, Docker Desktop allocates a monolithic virtual disk image (Docker.raw) that grows dynamically as containers are built, but never shrinks back when containers are deleted unless manual trim commands are executed.
Furthermore, local machine learning models run via Ollama, LM Studio, or llama.cpp store multi-gigabyte GGUF checkpoints in hidden application directories. MacSentinel’s Smart Care engine scans these developer-specific storage reservoirs with precise heuristic rules, showing you exactly how much space is reclaimable before you run out of SSD capacity during critical build passes.
MacSentinel adapts its Mach kernel polling routines to the exact memory bus width, cache topology, and core layout of each Apple Silicon generation:
First-generation Unified Memory Architecture with Firestorm (P) and Icestorm (E) cores. Memory bandwidth ranges from 68.25 GB/s (base M1) to 800 GB/s (M1 Ultra dual-die UltraFusion interconnect).
Enhanced Avalanche (P) and Blizzard (E) cores with a 50% increase in unified memory bandwidth on base chips (100 GB/s) and up to 800 GB/s on M2 Ultra. Supports up to 192 GB unified memory configurations.
First 3-nanometer Mac silicon featuring Dynamic Caching in the GPU hardware pipeline. Dynamic Caching allocates local GPU memory in real time rather than pre-allocating worst-case pools, changing swap dynamics.
Second-generation 3-nanometer architecture featuring 38 TOPS Neural Engine, 120 GB/s base memory bandwidth (up to 546 GB/s on M4 Max), and aggressive hardware instruction branch predictors.
Many contemporary system utilities are built with web technologies wrapped inside Electron or the Chromium Embedded Framework (CEF). While this approach accelerates cross-platform development for vendors, running a complete web browser instance with V8 JavaScript execution, Blink rendering engines, and Node.js runtimes just to monitor background vitals consumes between 250 MB and 500 MB of RAM—frequently exceeding the memory footprint of the rogue background processes you are trying to diagnose.
MacSentinel is engineered from the ground up in pure native Swift and Apple’s AppKit framework. It compiles directly to native Apple Silicon and Intel machine code, maintaining an ultra-lightweight resident physical RAM footprint of under 14.5 MB and consuming less than 0.2% of a single efficiency core during active telemetry sampling. When the application window is minimized or closed, telemetry polling automatically suspends to ensure zero battery drain and complete background silence.
By querying Mach microkernel interfaces directly via compiled C-APIs rather than spawning child shell processes or polling legacy sysctl tables, MacSentinel delivers true sub-millisecond precision without causing thermal fan spin-up or frame drops on macOS.
Native arm64 (Apple Silicon M1, M2, M3, M4) and x86_64 (Intel 64-bit Core i5/i7/i9).
Consumes under 14.5 MB resident memory. Sleeps when minimized or inactive.
Full compatibility with macOS Sonoma, Sequoia, and macOS 27 Golden Gate.
Zero root prompts, zero daemon helpers, zero launchd agents, zero kexts required.
Commercial cleaners charge $40–$70 every year. MacSentinel is a one-time lifetime license with zero recurring billing.
Full real-time system monitoring, free forever — on-device, zero telemetry. Perfect for students and curious developers.
Everything in Free plus one-click Smart Care Deep Clean, surgical uninstallation, storage treemaps, and advanced diagnostics for 2 Macs.
MacSentinel is built by Appsinfoway — a team obsessed with squeezing every drop of performance from Apple Silicon. We were tired of Activity Monitor hiding micro-bursts behind 5-second averages and third-party tools that shipped with 300 MB of Electron overhead.
So we built a native Swift app that talks directly to the Mach kernel, renders 16-core microsecond execution deltas in real time, and visualizes physical RSS memory treemaps — all in under 15 MB.
